01

Transforming Visual Gauge Inspections —Remote and Automated

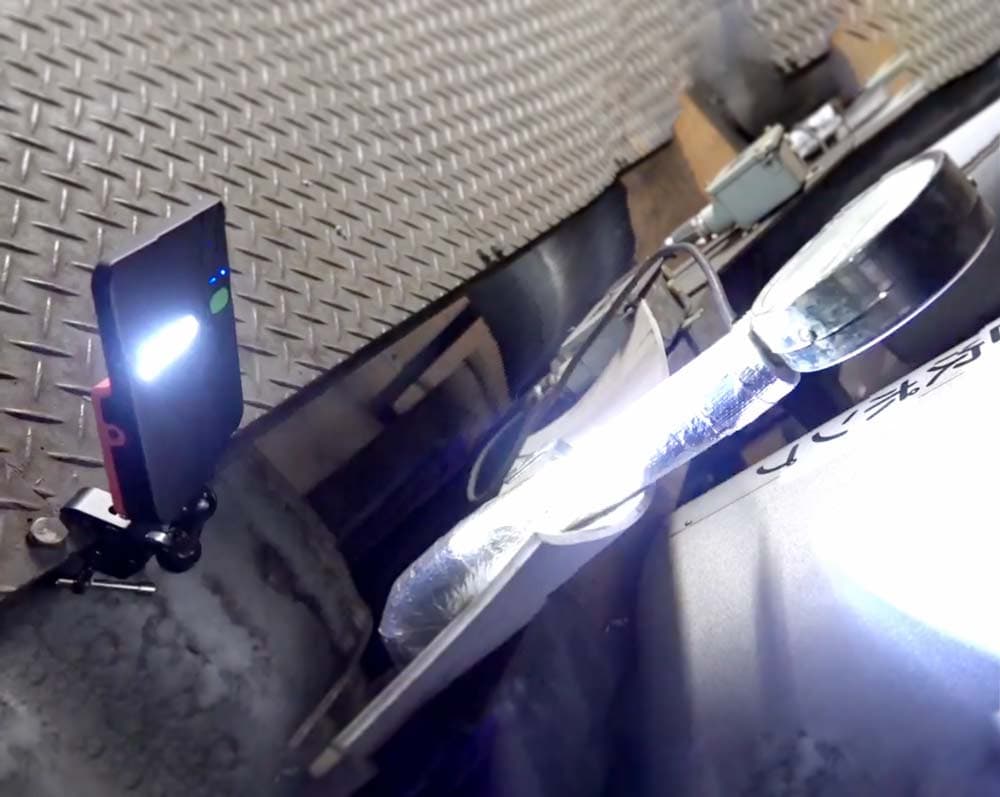

With our dedicated IoT camera (LC Series), designed to operate continuously for up to 3 years, visual gauge inspections can be easily automated and performed remotely — with no need for power or network cabling work. This enables efficient inspections in previously challenging environments, such as distant facilities, elevated tanks, or hazardous ceiling spaces.

*1 The continuous operation time of LiLz Cam varies depending on the shooting frequency, installation environment, shooting resolution, etc.

02

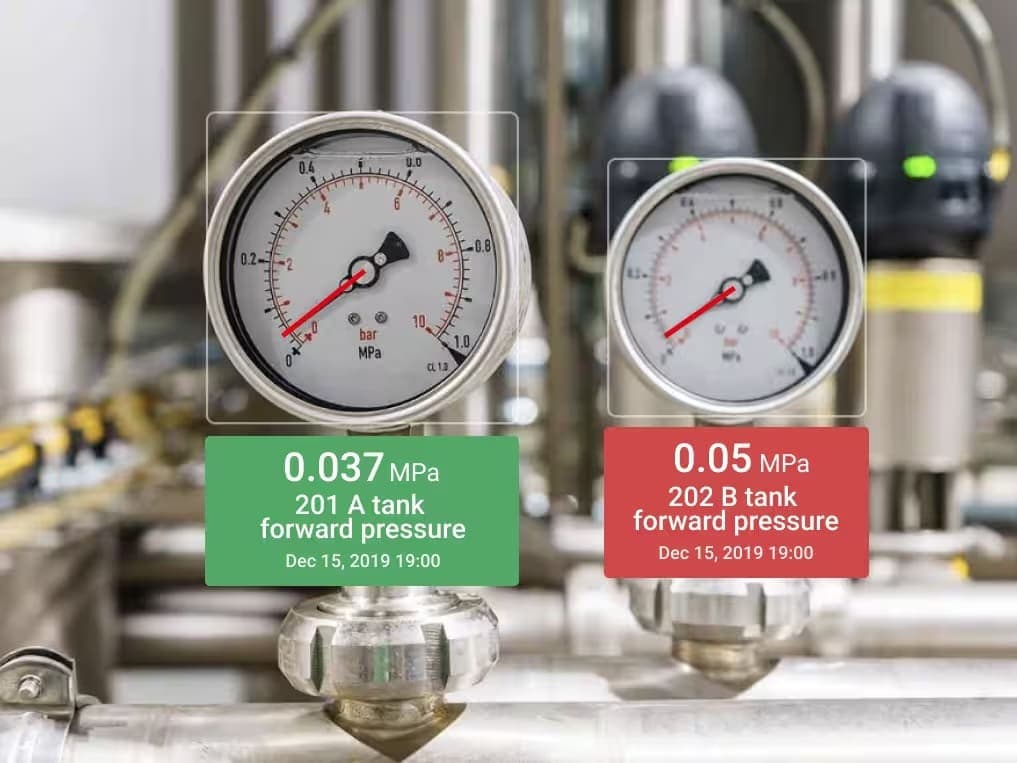

Automatically Read Multiple Gauges of Various Designs from a Single Image

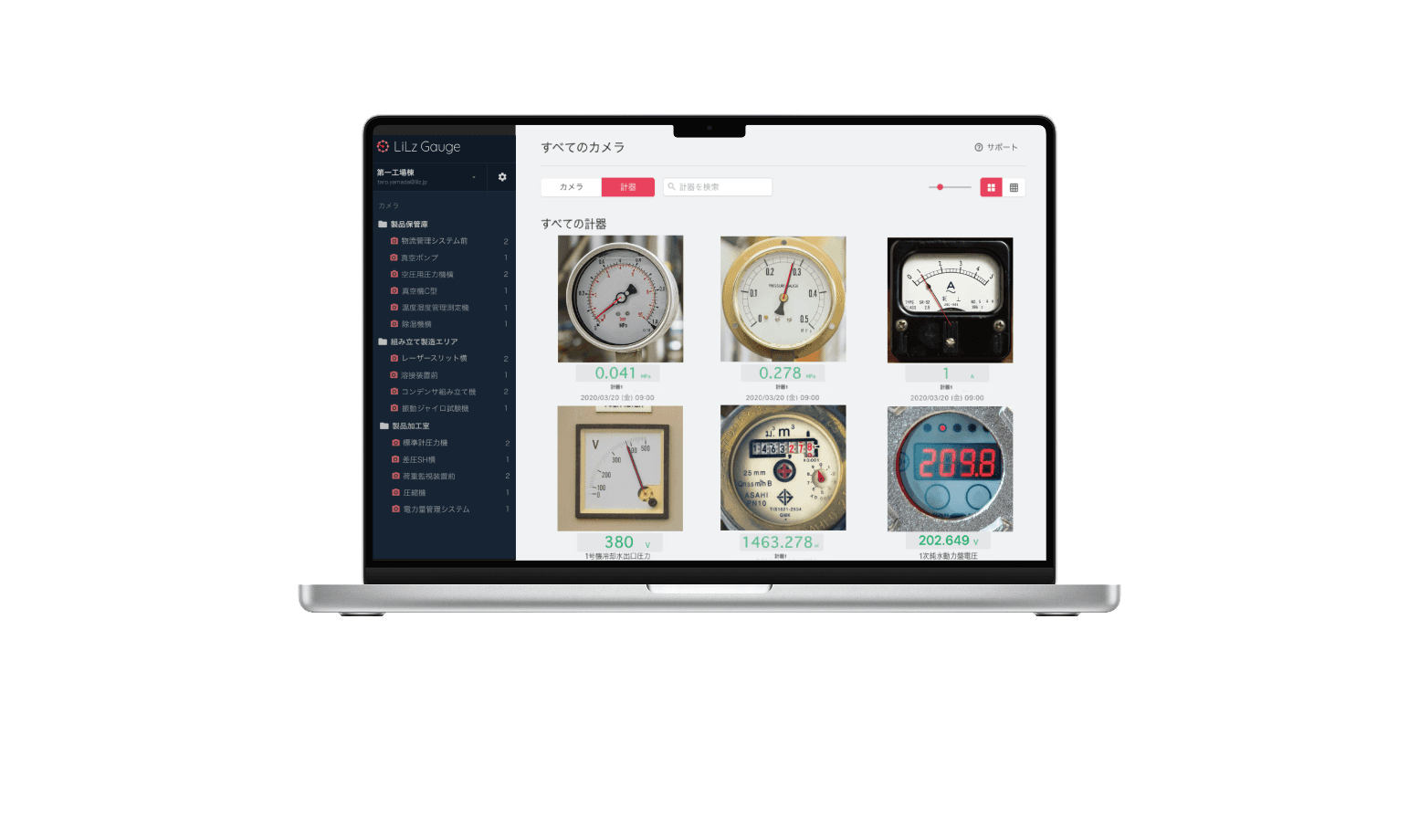

Gauge readings are digitized and transmitted through a secure channel, ensuring safe and reliable remote access via our web application, LiLz Gauge. You can organize gauge images and digitized readings by facility, and receive timely email alerts for efficient monitoring. (*2)

*2 The reading accuracy is not guaranteed to be 100%.

Supports many kinds of gauges

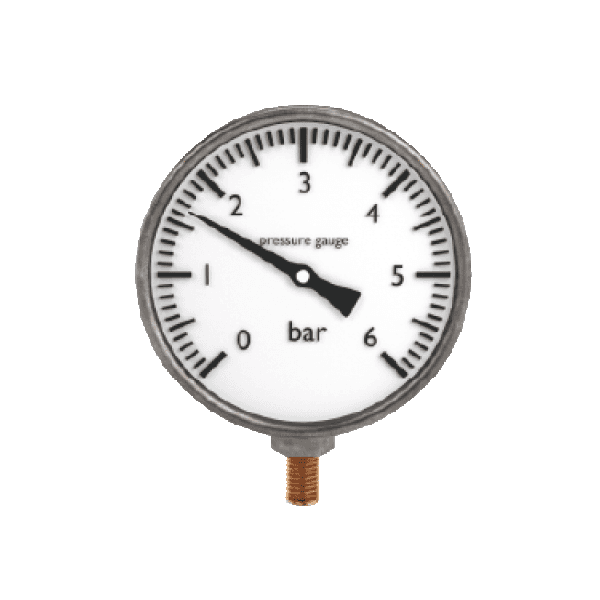

Round type

Rectangular type

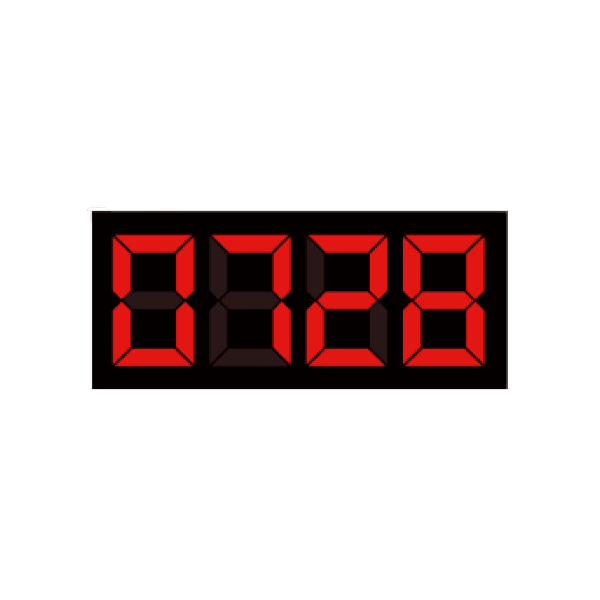

Seven‑segment type

Counter type

Level type

Float type

Lamp type

03

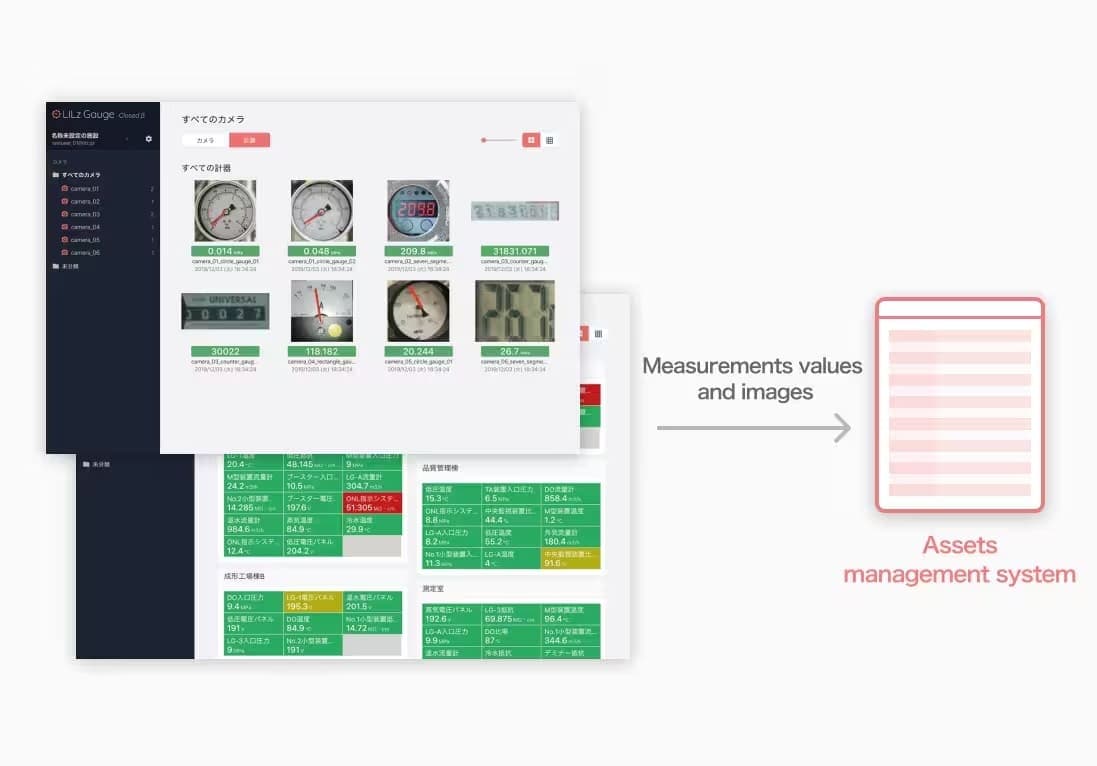

CSV Export and API Integration

CSV export comes as a standard feature. Using the API, you can retrieve gauge values and captured images. Integration with your existing facility management systems enables unified data management and greater operational efficiency.

About LiLz Gauge

Facility management companies need to perform visual inspections daily, spending significant time to visit all inspected locations. These businesses would like to improve their efficiency by introducing IoT devices, but as most field locations lack power supply and network connectivity, existing IoT solutions fail to meet their requirements.

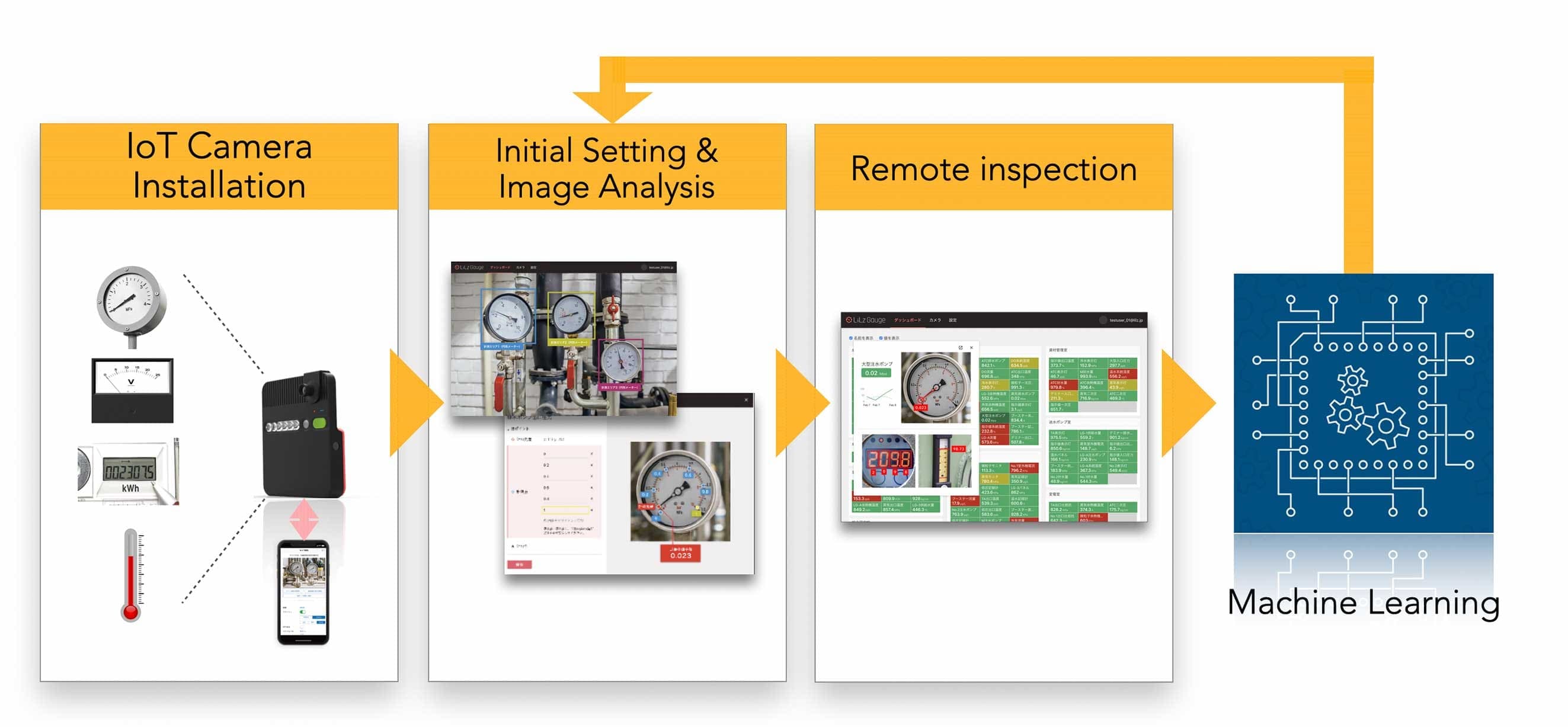

LiLz Gauge is a cloud service that utilizes ultra-low power consumption IoT cameras and machine learning to enable easy remote visual inspections of analog gauges. Many machine learning-based systems require significant data preparation effort upfront. LiLz Gauge is based on a mixture of deep learning and classical computer vision, and doesn’t require customers to annotate large amounts of data.

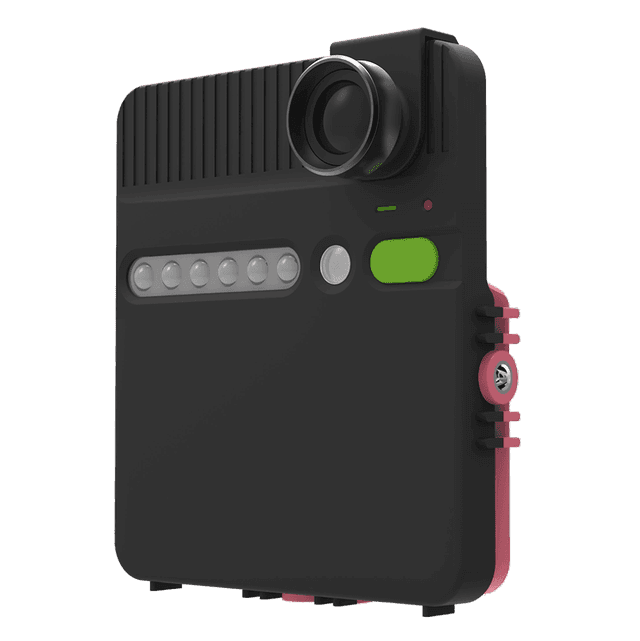

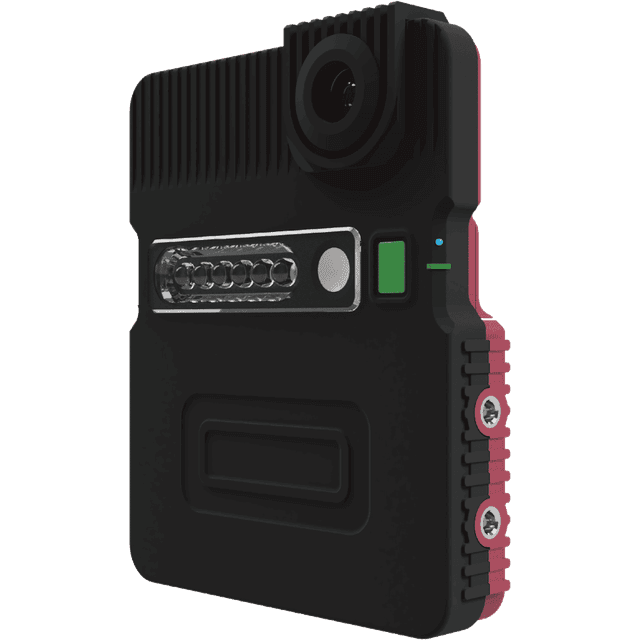

Step 1: Install the LC Series IoT Camera※

* A tablet and smartphone is required.

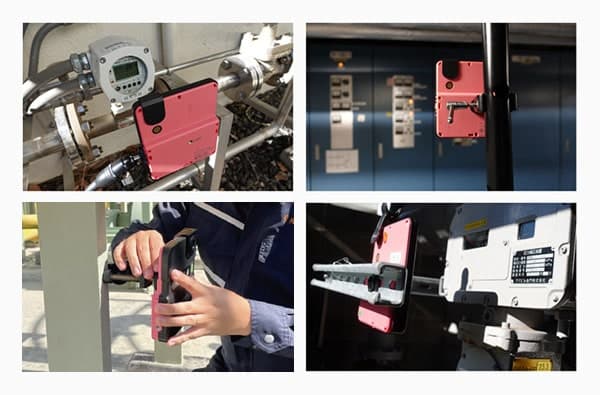

Use case

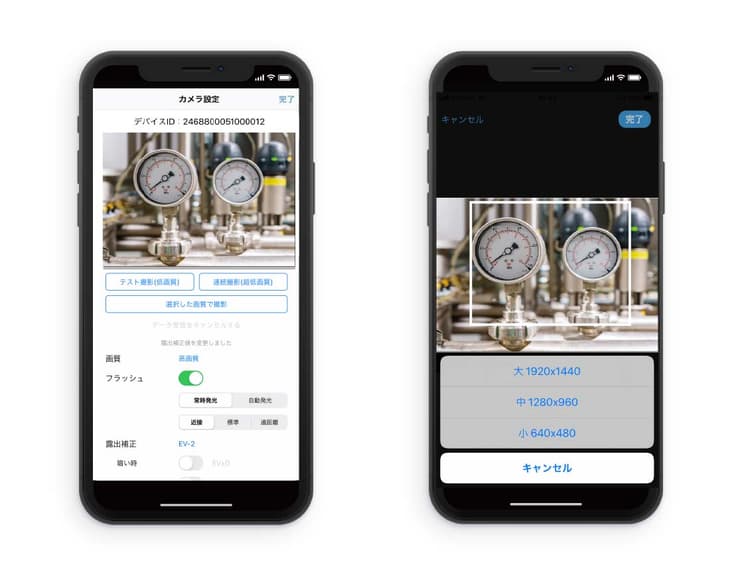

Run test captures and configure camera settings

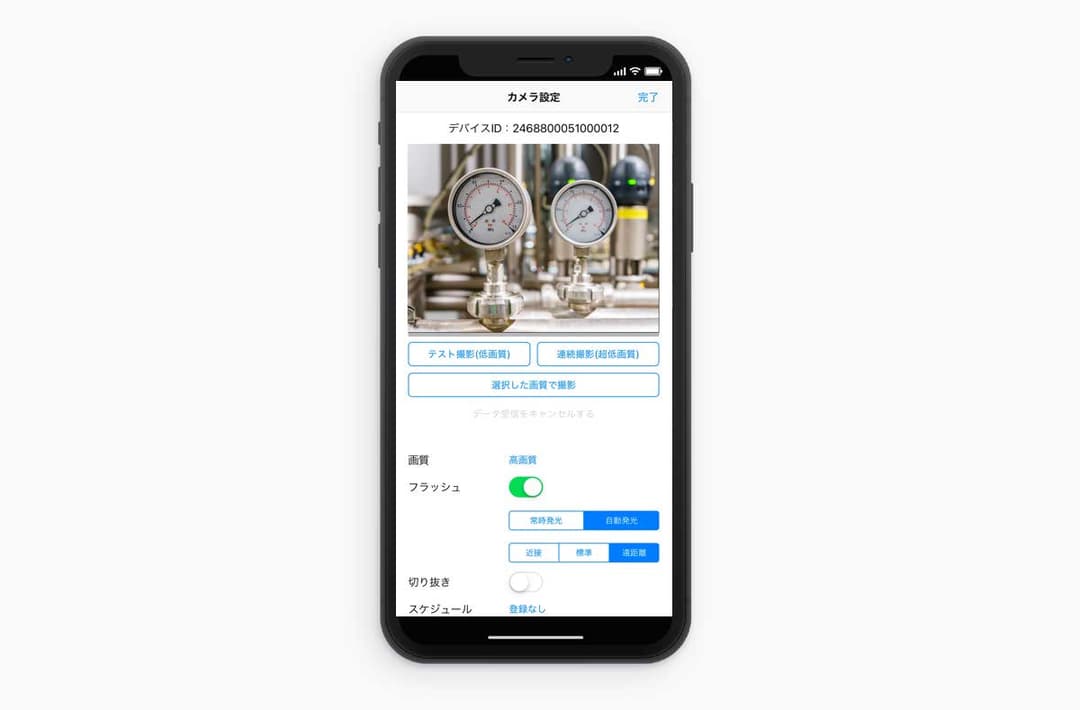

You can use the companion iOS app to run test captures and configure camera settings. Right after installation, you can check and adjust captured images on-site. The app also allows you to adjust camera position, change resolution, and set capture schedules while running continuous tests.

Step 2: Use the Companion Smartphone/Tablet App to Adjust Camera Angle and Brightness

Camera Registration

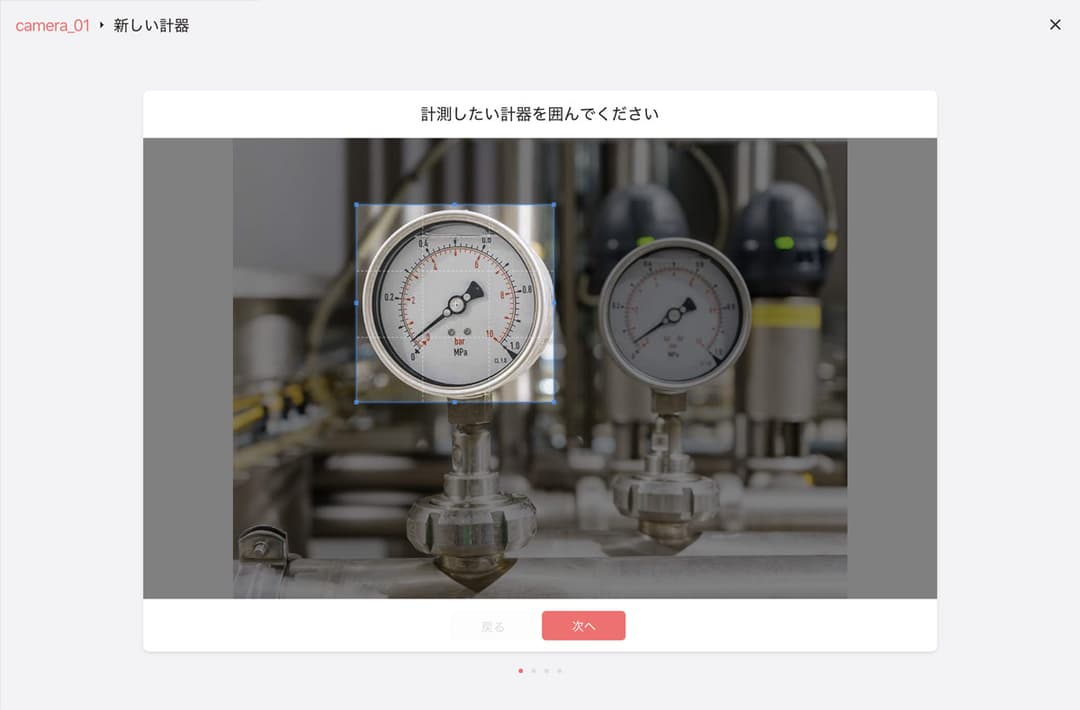

Measurement Area Registration (multiple areas supported)

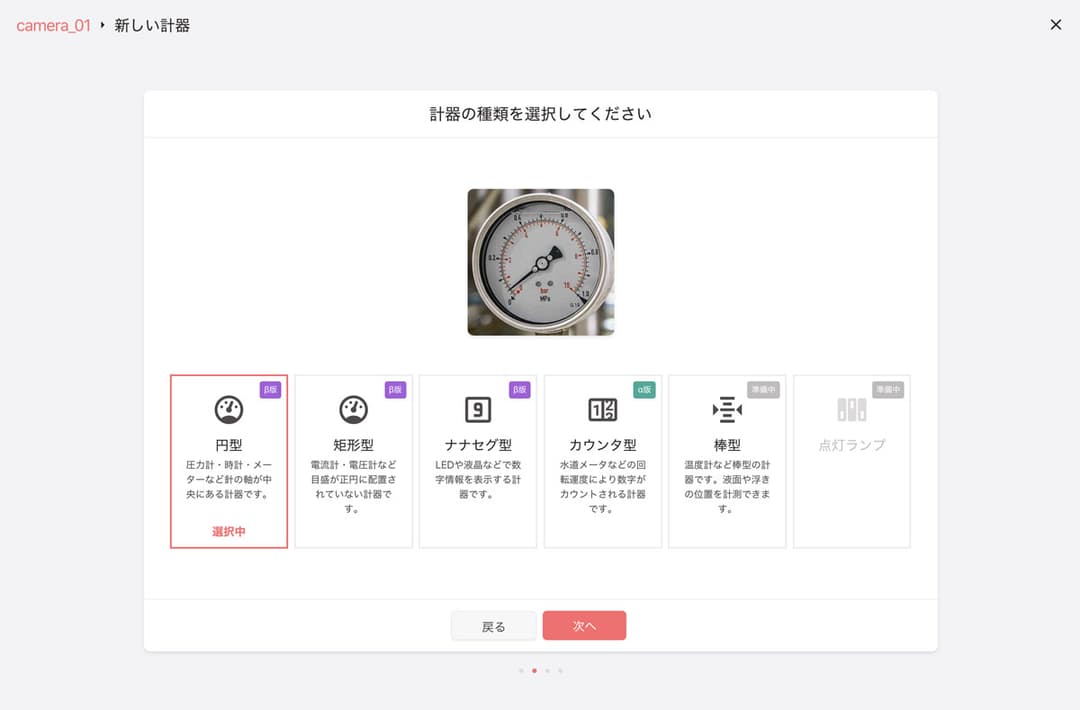

Select Measurement Algorithm

Initial Setup

STEP3: Set Detailed Reading Conditions on a PC

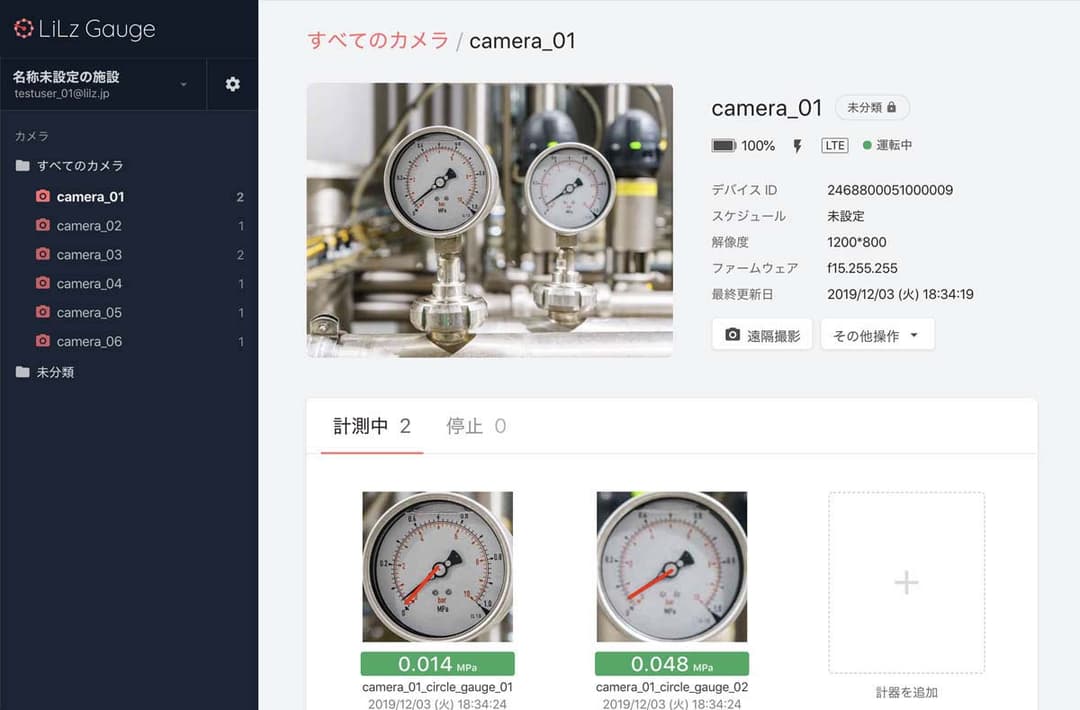

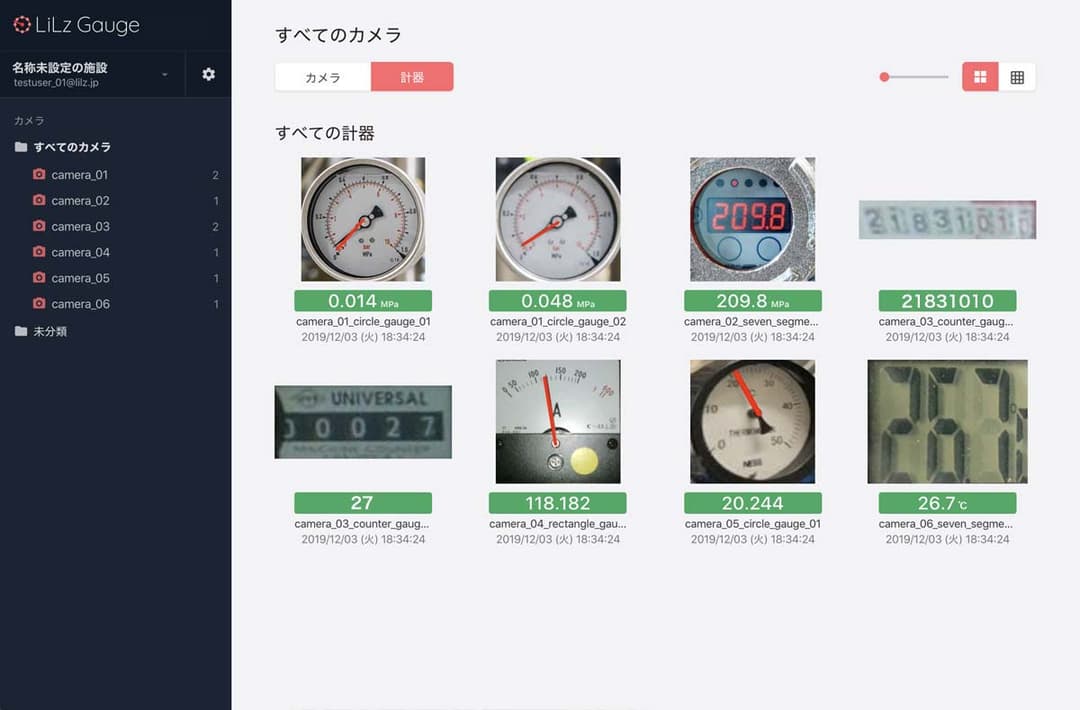

Dashboard

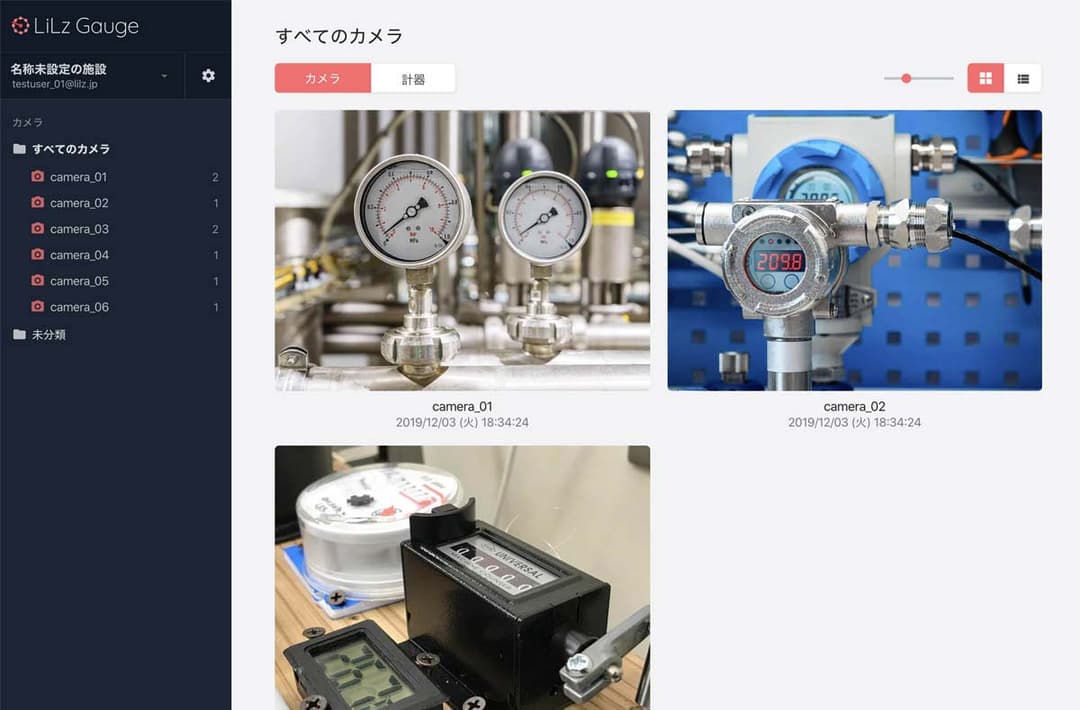

When Monitoring with Captured Images

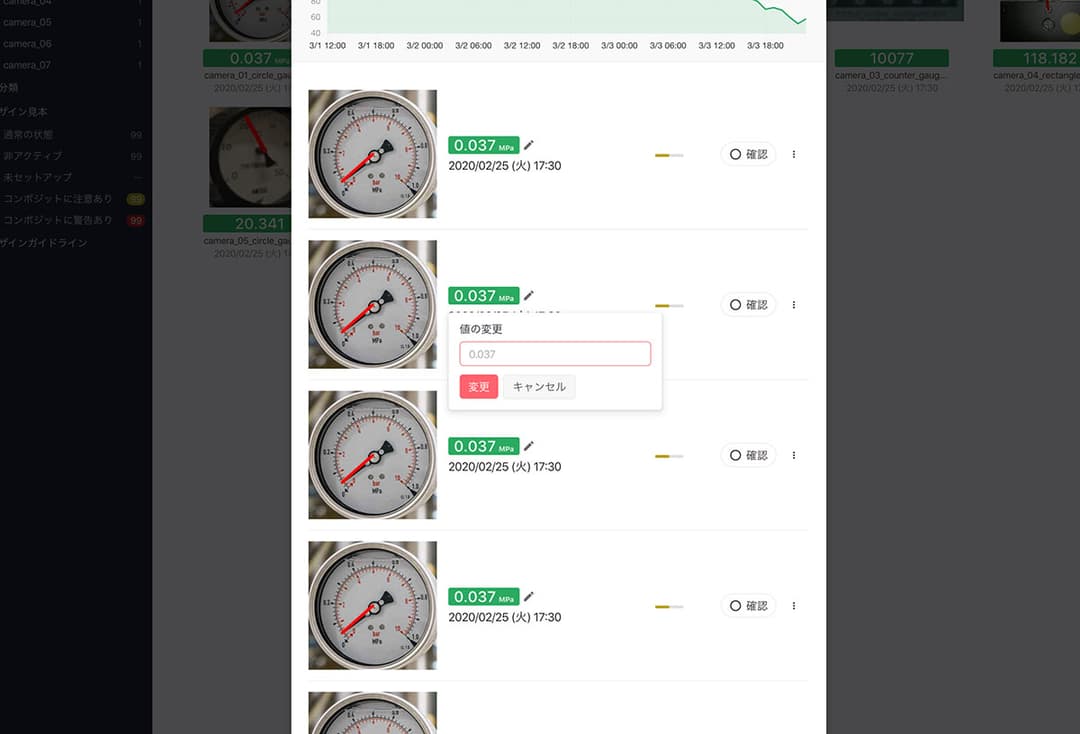

Inspection Input Assistance

If minor adjustments to AI-read readings are needed, you can manually correct the value.*

*AI-estimated values and manually corrected values are saved as separate records, helping prevent tampering.

Recommended Environment

OS : Windows/Mac
Supported browsers: Latest versions supported

Smartphone Application

OS: iOS 15 or later

Target industries
